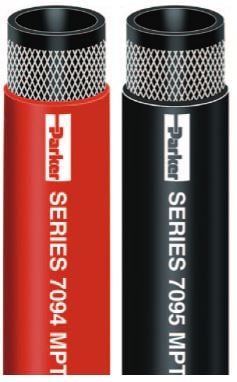

Parker MPT II Series 7094 & 7095 Hose


Parker MPT II Series 7094 / 7095 is a versatile, nonconductive multipurpose hose designed to handle air, mild chemicals, oil and water. The hose construction is electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC. The multiple plies of textile reinforcement provide flexibility and the cover is resistant to oil and weathering.

Note: Do not use in hot, dry air applications or with refined fuel. Hose does not meet SAE standards for mobile equipment or vehicle engine service. The user must determine if the hose is suitable for applications subject to electrical hazard. Contact Parker for additional information.



Parker MPT II Series 7094 & 7095 Hose Features

TUBE Black nitrile; ARPM Class A oil resistance
REINFORCEMENT Multiple textile plies
COVER

7094: Red chloroprene, smooth finish

7095: Black chloroprene, smooth finish
TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS ARPM Class A oil resistant tube; electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC
APPLICATIONS
  • Air, mild chemicals, oil, water
  • Cooling lines for electric furnaces and pot lines; lubrication systems
  • Agriculture, construction, foundries, general industrial
VACUUM Not recommended
COMPARE TO Boston Shock Safe; Gates PremoFlex/19B; Veyance Ortac/Wingfoot
PACKAGING Reels, cartons

Parker MPT II Series 7094 & 7095 Hose Specifications

Part Number

ID

Reinf
Plies

OD

Approx Wt

Min Bend Rad

Max Rec WP

Perm
Cplg Rec

7094 or 7095

in

mm

in

mm

lbs/ft

kg/ft

in

mm

psi

bar

-25200

1/4

6.4

2

0.500

12.7

0.10

0.05

2.0

50.8

200

13.8

HY

-25300

1/4

6.4

2

0.550

14.0

0.12

0.05

2.5

63.5

300

20.7

HY

-31300

5/16

7.9

2

0.594

15.1

0.13

0.06

3.3

83.8

300

20.7

HY

-38200

3/8

9.5

2

0.656

16.7

0.15

0.07

3.8

96.5

200

13.8

HY

-38300

3/8

9.5

2

0.688

17.5

0.17

0.08

3.8

96.5

300

20.7

HY

-3830050

3/8

9.5

2

0.688

17.5

0.17

0.08

3.8

96.5

300

20.7

HY

-50200

1/2

12.7

2

0.813

20.7

0.21

0.10

5.0

127.0

200

13.8

HY

-50250

1/2

12.7

2

0.844

21.4

0.22

0.10

5.0

127.0

250

17.2

HY

-50304

1/2

12.7

4

0.875

22.2

0.26

0.12

5.0

127.0

300

20.7

HY

-63304

5/8

15.9

4

1.062

27.0

0.38

0.17

6.1

154.9

300

20.7

HY

-75200

3/4

19.1

2

1.109

28.2

0.34

0.15

7.5

190.5

200

13.8

HY

-7520050

3/4

19.1

2

1.109

28.2

0.34

0.15

7.5

190.5

200

13.8

HY

-75304

3/4

19.1

4

1.156

29.4

0.40

0.18

6.0

152.4

300

20.7

HY

-7530450

3/4

19.1

4

1.156

29.4

0.40

0.18

6.0

152.4

300

20.7

HY

-100200

1

25.4

2

1.406

35.7

0.49

0.22

10.0

254.0

200

13.8

HY

-100304

1

25.4

4

1.438

36.5

0.54

0.24

8.0

203.2

300

20.7

HY

-125204

1-1/4

31.8

4

1.781

45.2

0.82

0.37

9.0

228.6

200

13.8

HY

-150204

1-1/2

38.1

4

2.031

51.6

0.90

0.41

10.0

254.0

200

13.8

HY

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
