Air & Multipurpose Industrial Hoses | Parker | SPARTAN™ Hot Air Blower Hose | SW560 Series

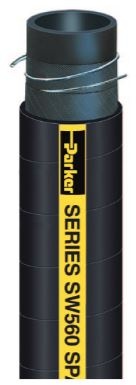

Series SW560 is a lightweight, medium pressure hot air blower hose designed for bulk loading/unloading of dry materials in plants or transport vehicles. The hose transfers hot air from a compressor to the storage bin/cargo bay to propel bulk product. The hose construction incorporates a tube that features a temperature rating to 350°F (177°C) and resists drying out. The dual wire helix provides full suction capability, kink resistance, flexibility for ease of handling and a path to conduct a static electrical charge to ground. The cover resists abrasion, heat and ozone.


TUBE Black EPDM
REINFORCEMENT Multiple textile plies with dual wire helix
COVER

Blue EPDM; wrapped finish

TEMPERATURE RANGE

-40°F to 350°F (-40°C to 177°C)

DESIGN FACTOR 4:1
APPLICATIONS
  • Hot air blower systems
  • In-plant transfer; delivery, loading/unloading
  • General industrial, transportation
VACUUM Full
PACKAGING Coils


Part Number

ID

Reinf
Plies

OD

Min Bend Rad

Max Rec WP

Perm
Cplg
Rec

in

in

in

psi

SW560-2000

2

2

2.450

6.0

125

*

SW560-3000

3

2

3.480

12.0

125

*

SW560-4000

4

2

4.480

16.0

100

*

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.

Do not use with cam and groove couplings.
„
