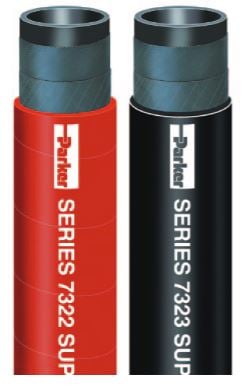

    Parker SUPER-FLEX GS 7322 & 7323 Series Hose


    Series 7322 / 7323 is a versatile general purpose hose designed to handle air, mild chemicals and water. The hose incorporates a tube that is compatible with light oil mists, and features a rigid mandrel construction that produces a true round, concentric profile for superior coupling fit and retention. The cover is resistant to abrasion, heat and ozone.
    Note: Do not use with oil or refined fuel.



    Parker SUPER-FLEX GS 7322 & 7323 Series Hose Features

    TUBE Black EPDM; ARPM Class C oil resistance
    REINFORCEMENT Multiple textile plies
    COVER

    7322: Red EPDM, wrapped finish

    7323: Black EPDM, wrapped finish
    TEMPERATURE RANGE

    -40°F to 212°F (-40°C to 100°C)
    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS ARPM Class C oil resistant tube
    APPLICATIONS
    • Air (including oil mist), mild chemicals, water
    • Agriculture, construction, general industrial
    VACUUM Not recommended
    COMPARE TO Gates AdaptaFlex; Veyance Horizon
    PACKAGING Coils, reels ("A" part numbers)

    Parker SUPER-FLEX GS 7322 & 7323 Series Hose Specifications

    NOTE: As of July 2017, both 7322 and 7323 series will only be available from Parker in 200 ft reels. Coil packaging of 50', 100', 125' and 150' have been dicontinued by the manufacturer.

    Part Number
    7322 or 7323

    ID

    Reinf
    Plies

    OD

    Min Bend Rad

    Max Rec WP

    Perm Cplg
    Rec

    in

    in

    in

    psi

    -125200

    1-1/4

    2

    1.741

    7.5

    200

    43

    -12520050

    1-1/4

    2

    1.741

    7.5

    200

    43

    -125200100

    1-1/4

    2

    1.741

    7.5

    200

    43

    -125200A

    1-1/4

    2

    1.741

    7.5

    200

    43

    -150200

    1-1/2

    2

    1.985

    8.5

    200

    43

    -15020050

    1-1/2

    2

    1.985

    8.5

    200

    43

    -150200100

    1-1/2

    2

    1.985

    8.5

    200

    43

    -150200A

    1-1/2

    2

    1.985

    8.5

    200

    43

    -200200

    2

    4

    2.568

    12.0

    200

    43

    -20020050

    2

    4

    2.568

    12.0

    200

    43

    -200200100

    2

    4

    2.568

    12.0

    200

    43

    *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

    WARNING!

    Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
    „
