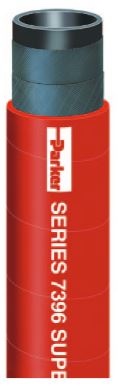

    Parker SUPER MPT II Series 7396 Hose


    Parker SUPER MPT II Series 7396 is a versatile, nonconductive multipurpose hose designed to handle air, mild chemicals, oil and water. The hose is electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC. The rigid mandrel construction produces a true round, concentric profile for superior coupling fit and retention. The cover is resistant to oil and weathering.



    Note: Do not use in hot, dry air applications or with refined fuel. Hose does not meet SAE standards for mobile equipment or vehicle engine service.The user must determine if the hose is suitable for applications subject to electrical hazard. Contact Parker for additional information.



    Parker SUPER MPT II Series 7396 Hose Features

    TUBE Black nitrile; ARPM Class A oil resistance
    REINFORCEMENT Multiple textile plies
    COVER Red chloroprene, wrapped finish
    TEMPERATURE RANGE

    -20°F to 212°F (-29°C to 100°C)
    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS ARPM Class A oil resistant tube; electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC
    APPLICATIONS
    • Air, mild chemicals and water
    • Cooling lines for electric furnaces and pot lines; lubrication systems
    • Agriculture, construction, foundries, general industrial
    VACUUM Not recommended
    COMPARE TO Gates Duroflex; Veyance Ortac 250
    PACKAGING Coils, reels ("A" part numbers)

    Parker SUPER MPT II Series 7396 Hose Specifications

    Part Number

    ID

    Reinf
    Plies

    OD

    Min Bend Rad

    Max Rec WP

    Perm
    Cplg
    Rec

    in

    in

    in

    psi

    7396-12520050

    1-1/4

    2

    1.741

    7.5

    200

    71

    7396-125200100

    1-1/4

    2

    1.741

    7.5

    200

    71

    7396-125200200

    1-1/4

    2

    1.741

    7.5

    200

    71

    7396-125200A

    1-1/4

    2

    1.741

    7.5

    200

    71

    7396-12530050

    1-1/4

    2

    1.798

    7.5

    300

    71

    7396-125300100

    1-1/4

    2

    1.798

    7.5

    300

    71

    7396-125300200

    1-1/4

    2

    1.798

    7.5

    300

    71

    7396-125300A

    1-1/4

    2

    1.798

    7.5

    300

    71

    7396-15020050

    1-1/2

    4

    1.985

    8.5

    200

    71

    7396-150200100

    1-1/2

    4

    1.985

    8.5

    200

    71

    7396-150200200

    1-1/2

    4

    1.985

    8.5

    200

    71

    7396-150200A

    1-1/2

    4

    1.985

    8.5

    200

    71

    7396-15030050

    1-1/2

    4

    2.025

    8.5

    300

    71

    7396-150300100

    1-1/2

    4

    2.025

    8.5

    300

    71

    7396-150300200

    1-1/2

    4

    2.025

    8.5

    300

    71

    7396-150300A

    1-1/2

    4

    2.025

    8.5

    300

    71

    7396-20020050

    2

    4

    2.568

    12.0

    200

    WC

    7396-200200100

    2

    4

    2.568

    12.0

    200

    WC

    7396-200200200

    2

    4

    2.568

    12.0

    200

    WC

    7396-20030050

    2

    4

    2.600

    12.0

    300

    WC

    7396-200300100

    2

    4

    2.600

    12.0

    300

    WC

    7396-200300200

    2

    4

    2.600

    12.0

    300

    WC

    *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

    WARNING!

    Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
    „
