Parker THORO-BRAID 7251 Series Hose

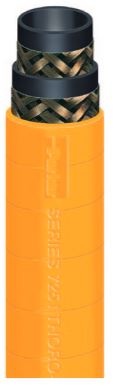

Series 7251 is a large diameter, versatile, medium pressure hose designed to handle air, mild chemicals, oil and water. The hose construction incorporates high tensile wire braid reinforcement that provides durability, kink resistance, medium pressure capability, and superior coupling retention. The flame resistant yellow cover meets MSHA requirements and is resistant to abrasion and oil. Series 7251 provides service for high pressure air, dust suppression and water applications in construction, general industrial, mines and quarries.

Parker THORO-BRAID 7251 Series Hose Features

TUBE Black chloroprene
REINFORCEMENT One or multiple wire braids
COVER

Yellow nitrile/PVC; perforated wrapped finish

TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRIAL STANDARDS MSHA
APPLICATIONS
  • Air, mild chemicals, oil, water
  • Heavy duty air tools, compressors; bull hose, drill hose
  • Construction, general industrial, mines, quarries
VACUUM Not recommended
COMPARE TO Gates 500 MP/Air Drill; Kuriyama T130AK; Veyance Ultrabraid Steel Air
PACKAGING Cartons

Parker THORO-BRAID 7251 Series Hose Specifications

Part Number

ID

Reinf
Braids

OD

Min Bend Rad

Max Rec WP

Perm
Cplg
Rec

in

in

in

psi

7251-1501K

1-1/2

1

2.062

20.0

600

43, 71

7251-2002K

2

2

2.656

25.0

600

43, WC

7251-2502K

2-1/2

2

3.156

32.0

500

*

7251-3002K

3

2

3.656

36.5

500

*

7251-4002K

4

2

4.656

48.0

400

*


*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
