Chemical Industrial Hoses | Parker | Anhydrous Ammonia Hose - Stainless Steel Reinforced | 7261 Series
![]() |

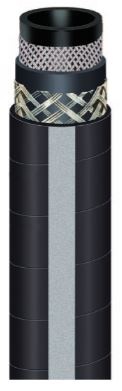

Series 7261 is a premium anhydrous ammonia transfer hose. The hose construction incorporates corrosion resistant high tensile stainless steel and nylon braids for superior durability and service life. The perforated cover is resistant to abrasion, mild chemicals and ozone, and the distinctive silver stripe provides color-coded identification.
|
Part Number |
ID |
Reinf |
OD |
Approx Wt |
Min Bend Rad |
Max Rec WP |
Perm |
in |
in |
lbs/ft |
in |
psi |
|||
7261-1001 |
1 |
2 |
1.500 |
0.65 |
12.0 |
350 |
43, 7661 |
7261-1252 |
1-1/4 |
2 |
1.781 |
0.85 |
16.5 |
350 |
43 |
7261-1501K |
1-1/2 |
2 |
2.030 |
1.02 |
20.0 |
350 |
43 |
7261-2002K |
2 |
3 |
2.625 |
1.61 |
25.0 |
350 |
7661 |
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
WARNING!
- Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
- For Anhydrous Ammonia use ONLY. Do not use in Liquid Petroleum Gas (LPG)/Propane or Natural Gas applications. Use only with couplings qualified by Parker. Do not use with couplings containing hidden o-rings such as male swivel couplings. For non-agricultural or refrigeration applications, contact Parker.
- Contact with Anhydrous Ammonia (NH3) will burn skin and is especially damaging to the eyes and lungs. This is true for its liquid and gaseous (vapor) state. Many accidents involving NH3 have occurred by using the wrong hose. NH3 hose must be specially compounded and constructed to handle the media. NEVER use a hose that is not designed for NH3 because it may fail very quickly and cause bodily injury or death. It is especially important to ensure that only Anhydrous Ammonia hose is recommended and used for this service. Refer to ARPM Publications IP-14 “Anhydrous Ammonia Hose, Specifications” and IP-11-2 “Anhydrous Ammonia Hose, Manual for Maintenance, Testing and Inspection.”
