Chemical Industrial Hoses | Parker | Anhydrous Ammonia Hose - Nylon Reinforced | 7262 Series

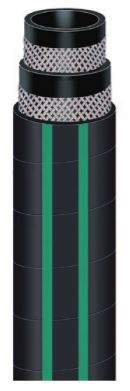

Series 7262 is a lightweight anhydrous ammonia transfer hose. The hose construction incorporates corrosion resistant high tensile nylon braids for flexibility and kink resistance. The perforated cover is resistant to abrasion, mild chemicals and ozone, and the distinctive dual green stripes provide color-coded identification.



TUBE Black EPDM
REINFORCEMENT Multiple textile braids
COVER Black EPDM; perforated wrapped finish
TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS ARPM IP-14
APPLICATIONS
  • Anhydrous ammonia
  • In-plant and tank transfer, transport and delivery; fertilizer dispensing
  • Agriculture
VACUUM Not recommended
COMPARE TO Goodall N2000
PACKAGING Coils


Part Number

ID

Reinf
Braids

OD

Min Bend Rad

Max Rec WP

Perm
Cplg Rec

in

in

in

psi

7262-502

1/2

2

0.950

5.0

350

7661

7262-752

3/4

2

1.250

8.0

350

HY

7262-1002

1

2

1.510

10.0

350

7661

7262-1252

1-1/4

2

1.781

12.0

350

HY

7262-1502K

1-1/2

2

2.030

14.0

350

43

7262-2003K

2

3

2.750

16.0

350

7661

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

  • Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
  • For Anhydrous Ammonia use ONLY. Do not use in Liquid Petroleum Gas (LPG)/Propane or Natural Gas applications. Use only with couplings qualified by Parker. Do not use with couplings containing hidden o-rings such as male swivel couplings. For non-agricultural or refrigeration applications, contact Parker.
  • Contact with Anhydrous Ammonia (NH3) will burn skin and is especially damaging to the eyes and lungs. This is true for its liquid and gaseous (vapor) state. Many accidents involving NH3 have occurred by using the wrong hose. NH3 hose must be specially compounded and constructed to handle the media. NEVER use a hose that is not designed for NH3 because it may fail very quickly and cause bodily injury or death. It is especially important to ensure that only Anhydrous Ammonia hose is recommended and used for this service. Refer to ARPM Publications IP-14 “Anhydrous Ammonia Hose, Specifications” and IP-11-2 “Anhydrous Ammonia Hose, Manual for Maintenance, Testing and Inspection.”
