Chemical Industrial Hoses | Parker | EXACT-CHEM® Modified XLPE Chemical Hose | SW383 Series
![]() |

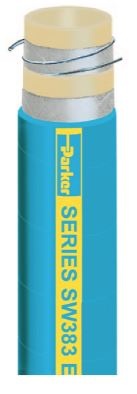

Note: As of November 2016, the Series SW383 EXACT-CHEM Modified XLPE Chemical & Food Suction Hose has been discontinued by Parker. The SWC683/G Titanflex Modified XLPE Chemical Hose is recommended as a replacement. Series SW383 is a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. The hose construction incorporates a modified cross-linked polyethylene (MXLPE) tube that features a temperature rating to 180°F (82°C), meets FDA, USDA and 3-A requirements, and will not leach into and contaminate the product being conveyed. The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.
|
Part Number |
ID |
Reinf |
OD |
Min Bend Rad |
Max Rec WP |
Perm Cplg Rec |
in |
Plies |
in |
in |
psi |
||
7276-752 |
3/4 |
2 |
1.250 |
3.0 |
200 |
43 |
7276-1002 |
1 |
2 |
1.475 |
4.0 |
200 |
43 |
7276-1252 |
1-1/4 |
2 |
1.715 |
5.0 |
200 |
43 |
7276-1502 |
1-1/2 |
2 |
2.000 |
6.0 |
200 |
43 |
7276-2002 |
2 |
2 |
2.567 |
8.0 |
200 |
43, HAPS, RE, RST, TM, WC |
7276-3002 |
3 |
4 |
3.606 |
12.0 |
200 |
RE, RST, TM |
7276-4002 |
4 |
4 |
4.700 |
16.0 |
200 |
* |
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
WARNING!
- It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
- At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
- Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
