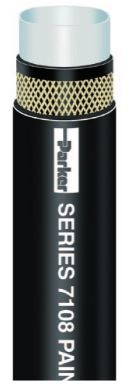

Chemical Industrial Hoses | Parker | Paint Fluid Hose | 7108 Series

Series 7108 is a medium pressure transfer hose designed to handle high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals. The hose construction incorporates a nylon tube that will not leach into and contaminate the product being conveyed, and the robust aramid reinforcement provides kink resistance, strength and superior coupling retention. The cover is resistant to mild chemicals, oil and ozone.   TUBE Translucent nylon REINFORCEMENT Multiple aramid plies COVER Blue chloroprene; smooth finish TEMPERATURE RANGE 0°F to 200°F (-18°C to 93°C) DESIGN FACTOR 4:1 INDUSTRY STANDARDS None applicable APPLICATIONS Lacquers, light chemicals, paints, solvents, thinners Connector, mixing, transfer service VACUUM Not rated COMPARE TO: Boston Nyall; Gates 77B; Veyance NR Spray PACKAGING Reels

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

• It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
• Do not use in high pressure spray painting applications requiring a statically conductive hose.
