Composite Industrial Hoses | Parker | Vapor Recovery Hose | 1000 Series


vapor-recovery-1000

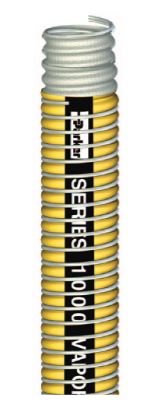

Series 1000 provides excellent service across a variety of petroleum and petrochemical vapors in low pressure/suction applications. The hose is lighter weight, more flexible and significantly easier to bend, install and handle than conventional rubber hoses. The hose provides full suction capability, resists crushing and kinking and absorbs vibration, keeping the hose securely in place. The distinctive yellow cover is easily identified and the hose is qualified with permanent crimp couplings for a safe and secure connection.

NOTE: Not for dry material service.



INNER WIRE Galvanized steel (G)
INNER LINER Polypropylene fabric
HOSE WALL Multiple layers of fabric/film/tubes
COVER Yellow PVC-covered polyester
OUTER WIRE Galvanized steel (G)
TEMPERATURE RANGE

-40°F to 212°F (-40°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS USCG 33CFR 154.810
APPLICATIONS Petroleum and petrochemical vapor recovery in bottom loading, ship-to-shore and tank truck transfer
VACUUM Full
COMPARE TO Apollo 110P, Dantec Danoil VR; Peraflex GGP-VRH; Tift 944 Chemflex VRH; Uni-Chem Uni-VR; Wilcox 1321
COUPLINGS Permanently attached one-piece male pipe or flanged ends; cam and groove.
ASSEMBLIES Per customer requirement; hydrostatically tested to 150% of the rated working pressure.


Part #

ID (in) Min Bend Rad (in) Max Rec WP (psi) Max Lg (ft)
1000GG-4000 4 11.0 100 70
1000GG-6000 6 16.0 100 65
1000GG-8000 8 22.0 100 65
1000GG-10000 10 35.0 100 50

Inner and outer wire also available in stainless steel (316). Example part #: 1000GS-4000 = galvanized inner wire, stainless steel outer.
