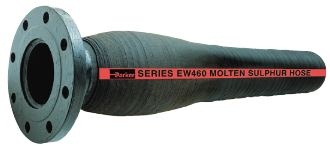

Dock Industrial Hoses | Parker | Molten Sulphur Hose | EW460 Series


    Series EW460 is a heavy duty, high temperature suction and discharge/dock hose for transferring molten sulphur between tankers, barges, and storage tanks. The hose construction incorporates a specially formulated high grade EPDM tube that features a temperature rating to 300°F (149°C). The wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The rugged, high grade EPDM cover is resistant to abrasion, heat, mild chemicals and ozone. Series EW460 meets all United States Coast Guard (USCG) requirements for dock/OS&D hose.
    TUBE Black EPDM
    REINFORCEMENT Multiple plies of tire cord with wire helix
    COVER Black EPDM; wrapped finish
    TEMPERATURE RANGE

    -40°F to 300°F (-40°C to 149°C)

    DESIGN FACTOR 5:1
    INDUSTRY STANDARDS USCG
    APPLICATIONS
    • Hot, molten sulphur
    • Transfer between barges, storage tanks and marine vessels
    VACUUM Full
    PACKAGING Lengths and coils in bales, crates or slat packs
    COUPLINGS Built-in nipples, male pipe or flanged. Other configurations available.


    Part #

    		 ID (in) OD (in) Reinf Plies Min Bend Rad (in) Max Rec WP (psi) Max Lg (ft)
    EW460-6000 6 8.000 6 42.0 200 100
    EW460-8000 8 10.250 8 54.0 200 50
    EW460-10000 10 12.250 8 66.0 200 50
