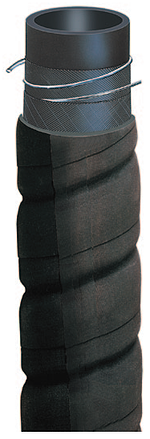

Parker EWC888 Series Hose

Series EWC888 | Corrugated Industrial Vacuum Hose

1/8" Natural Rubber Tube (Custom made hose)


Series EWC888 is a flexible, light duty suction/vacuum hose for general industrial applications. The 1/8" natural rubber tube provides abrasion resistance, and the dual wire helix provides full suction capability, kink resistance and a path to conduct a static charge to ground. The corrugated SBR cover provides flexibility and is resistant to abrasion, cuts, scuffs and weathering.

NOTE: Other customized versions of this product are available. Contact Parker.



Parker EWC888 Series Hose Sizes & Specifications

Parker EWC888 Hose
  • Tube:  1/8" Black natural rubber

  • Reinforcement:  Multiple plies of tire cord with dual wire helix

  • Cover:  Black SBR; corrugated wrapped finish

  • Temp. Range:  -40°F to +150°F (-40°C to +66°C)

  • Brand Method:  Not branded

  • Design Factor:  4:1

  • Industry Standards:  None applicable

  • Applications:  Abrasive materials, debris, water, construction, general industrial

  • Vacuum:  Full

  • Packaging:  Lengths or coils in bales, crates or slat packs

  • Couplings:  Contact Parker




Part
Number

ID
(in)

ID
(mm)

Reinf
Plies

OD
(in)

OD
(mm)

Approx
Wt
(lbs/ft)

Approx
Wt
(kg/ft)

Min Bend Rad (in)

Min Bend Rad (mm)

Max Rec WP (psi)

Max Rec WP (bar)

Max
Lg
(ft)

EWC888-5000

5

127.0

2

5.813

147.7

3.80

1.72

20.0

508.0

75

5.2

100

EWC888-6000

6

152.4

2

6.875

174.6

4.80

2.18

24.0

609.6

75

5.2

100

EWC888-8000

8

203.2

2

8.938

227.0

7.00

3.18

36.0

914.4

75

5.2

100

EWC888-10000

10

254.0

2

11.000

179.4

10.30

4.67

48.0

1219.2

50

3.4

50

EWC888-12000

12

304.8

2

13.125

333.4

13.20

6.00

60.0

1524.0

40

2.8

50
