Food & Beverage Industrial Hoses | Parker | Corrugated Food Suction Hose (Nitrile Tube) | SW430 Series


Note: As of November 2016, the Series SWC430 Corrugated Food Suction Hose has been discontinued by Parker. The SW430 Food Suction Hose is recommended as a replacement.

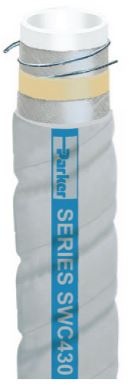

Series SWC430 is a flexible suction and discharge hose designed to handle fatty and oily foods, liquids, sanitary products and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor. The tube cleans easily with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0 bar). The lightweight corrugated construction incorporates a dual wire helix that provides full suction capability, kink resistance and additional flexibility for ease of handling, and a path to conduct a static electrical charge to ground. The nitrile cover is resistant to abrasion and oil.



TUBE White nitrile
REINFORCEMENT Multiple textile plies with dual wire helix
COVER Gray nitrile; corrugated wrapped finish
TEMPERATURE RANGE

-20°F to 225°F (-29°C to 107°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS FDA, PMO, USDA, 3-A
APPLICATIONS
  • Fatty and oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
VACUUM Full
PACKAGING Coils



Part Number

ID

Reinf
Plies

OD

Min Bend Rad

Max Rec WP

Std Pack Qty

in

in

in

psi

ft

SWC430-2000

2

2

2.625

5.0

150

100

SWC430-3000

3

2

3.688

6.0

150

100

SWC430-4000

4

2

4.813

8.0

150

100

SWC430-6000

6

2

6.750

12.0

100

100

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
