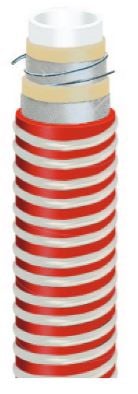

Food & Beverage Industrial Hoses | Parker | LIGHT-N-BRIGHT™ Food Suction Hose (Chlorobutyl Tube - External PVC Helix) | SP330 Series

    Note: As of April 2018, the SP330 Series LIGHT-N-BRIGHT Corrugated Food Suction Hose is obsolete and will no longer be available for purchase. Please see Series SW630 TITANFLEX Food Suction Hose as Parker's recommended replacement.


    Series SP330 is a suction and discharge hose designed to handle non-fatty and non-oily foods, liquids, sanitary products and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube that will not impart taste or odor, and is resistant to bacteria and microbes. Series SP330 features a lightweight construction with an external PVC helix for full suction capability, superior flexibility and resistance to abrasion, crushing and kinking.



    TUBE White chlorobutyl
    REINFORCEMENT Multiple textile plies (with dual wire helix, 3" and 4" only)
    COVER Red synthetic rubber with external gray PVC helix
    TEMPERATURE RANGE

    -40°F to 225°F (-40°C to 107°C)
    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS FDA, PMO, USDA, 3-A
    APPLICATIONS
    • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
    • In-plant and tank transfer
    • Delivery, transport
    VACUUM Full
    PACKAGING Coils
    COUPLINGS Requires SP100 banding coils



    Part Number

    ID

    Reinf
    Plies

    OD

    Approx
    Wt

    Min Bend Rad

    Max Rec WP

    Std Pack Qty

    in

    mm

    in

    mm

    lbs/ft

    kg/ft

    in

    mm

    psi

    bar

    ft

    SP330-2000

    2

    50.8

    2

    3.000

    76.2

    1.39

    0.63

    2.0

    50.8

    100

    7.0

    100

    SP330-2500

    2-1/2

    63.5

    2

    3.500

    88.9

    1.73

    0.78

    3.0

    76.2

    100

    7.0

    100

    SP330-3000

    3

    76.2

    2

    4.000

    101.6

    2.48

    1.12

    4.0

    101.6

    100

    7.0

    100

    SP330-4000

    4

    101.6

    2

    5.000

    127.0

    3.53

    1.60

    6.0

    152.4

    100

    7.0

    100

    *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

    WARNING!

    Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
    „
