Parker Hannifin is a premier world-wide supplier of Industrial Hose for wide range of industrial applications. New hoses are continuously being developed for emerging and established industries alike. For special applications, custom hoses are also available.

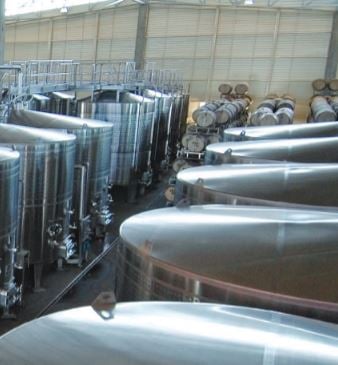

Food & Beverage hoses are designed to deliver and transport food, beverages and potable water in a variety of applications. They often incorporate stainless steel mandrels for ultra-smooth tubing that does not impart taste or odor and is resistant to bacteria and microbes. The hoses are rated to FDA, USDA and 3-A standards.

TITANFLEX® - Food Suction Hose (Nitrile Tube) - SW640 Series

 TUBE  White nitrile
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray nitrile; wrapped finish
 TEMPERATURE RANGE

-20°F to 225°F (-29°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Fatty and oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker TITANFLEX® SW640 Hose Details

Food Suction Hose (Nitrile Tube) - SW430 Series

 TUBE  White nitrile
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray nitrile; wrapped finish
 TEMPERATURE RANGE

-20°F to 225°F (-29°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Fatty and oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker Food Suction SW430 Hose Details

Corrugated Food Suction Hose (Nitrile Tube) - SWC430 Series

 TUBE  White nitrile
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray nitrile; corrugated wrapped finish
 TEMPERATURE RANGE

-20°F to 225°F (-29°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Fatty and oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker Food Suction SWC430 Hose Details

Corrugated Food Suction Hose (Nitrile Tube) - SWC432 Series

 TUBE  White nitrile
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray nitrile; enhanced corrugated wrapped finish
 TEMPERATURE RANGE

-20°F to 225°F (-29°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Fatty and oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker Food Suction SWC432 Hose Details

Beverage & Potable Water Discharge Hose (Nitrile Tube) - SS290 Series

 TUBE  White nitrile
 REINFORCEMENT  Multiple textile plies
 COVER  Gray natural rubber; wrapped finish
 TEMPERATURE RANGE

-20°F to 225°F (-29°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Beverages, liquids, milk, potable water
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Not recommended
 PACKAGING  Coils
Parker Beverage & Potable Water SS290 Hose Details

Food Suction Hose (Chlorobutyl Tube) - SW330 Series

 TUBE  White chlorobutyl
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 225°F (-40°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker Food Suction SW330 Hose Details

TITANFLEX® Food Suction Hose (Chlorobutyl Tube) - SW630 Series

 TUBE  White chlorobutyl
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 225°F (-40°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker TITANFLEX® SW630 Hose Details

HARVEST PLUS™ Food Suction Hose (Chlorobutyl Tube, Crush Resistant) - SM382 Series

 TUBE  White chlorobutyl
 REINFORCEMENT  Multiple textile plies with dual monofilament helix and dual static wire
 COVER  Gray EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 225°F (-40°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full (1-1/2" ID through 3" ID); 15" Hg (4" ID)
 PACKAGING  Coils
Parker HARVEST PLUS™ SM382 Hose Details

LIGHT-N-BRIGHT™ Food Suction Hose (Chlorobutyl Tube, External PVC Helix) - SP330 Series - OBSOLETED

 TUBE  White chlorobutyl
 REINFORCEMENT  Multiple textile plies (with dual wire helix, 3" and 4" only)
 COVER  Red synthetic rubber with external gray PVC helix
 TEMPERATURE RANGE

-40°F to 225°F (-40°C to 107°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full (1-1/2" ID through 3" ID); 15" Hg (4" ID)
 PACKAGING  Coils

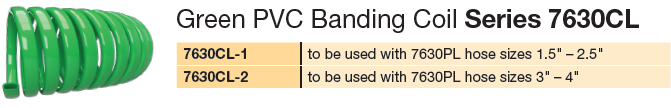

 COUPLINGS  Requires SP100 banding coils
Parker LIGHT-N-BRIGHT™ SP330 Hose Details

Brewers Discharge Hose (Chlorobutyl Tube) - SS200 Series

 TUBE  White chlorobutyl
 REINFORCEMENT  Multiple textile plies
 COVER  Orange EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Beer, wine, non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Not recommended
 PACKAGING  Coils
Parker Brewers Discharge SS200 Hose Details

Flour Hose (3/16" Natural Rubber Tube) - SW431 Series - OBSOLETED

 TUBE  White natural rubber
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray natural rubber; wrapped finish
 TEMPERATURE RANGE

-20°F to 180°F (-29°C to 82°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Flour, dry abrasive materials, grains, granules, pellets, powders, sugar
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer, delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker Flour SW431 Hose Details

Food Discharge Hose (Natural Rubber Tube) - SS231 Series

 TUBE  White natural rubber
 REINFORCEMENT  Multiple textile plies with dual static wire
 COVER  Gray natural rubber; wrapped finish
 TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Flour, dry abrasive materials, grains, granules, pellets, powders, sugar
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer, delivery, transport
 VACUUM  Not recommended
 PACKAGING  Coils
Parker Food Discharge SS231 Hose Details

Food Suction / Hot Air Blower Hose (EPDM Tube) - SW319 Series

<
 TUBE  White EPDM
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Gray EPDM; wrapped finish
 TEMPERATURE RANGE

-20°F to 325°F [350°F intermittent] (-29°C to 163°C [177°C intermittent])

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, PMO, USDA, 3-A
 APPLICATIONS
  • Flour, dry abrasive materials, grains, granules, pellets, powders, sugar
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • Hot air blower systems
  • In-plant and tank transfer, delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker Food Suction SW319 Hose Details

EXACT-CHEM™ Modified XLPE Chemical & Food Suction Hose - SW383 Series

 TUBE  Tan modified cross-linked polyethylene (MXLPE)
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Blue EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods and liquids, potable water, sanitary products
  • Acids, chemicals, solvents
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 COMPARE TO  Boston Panther Chemical Transfer; Gates Mustang 45HW; Veyance Blue Flexwing
 PACKAGING  Coils
Parker EXACT-CHEM™ SW383 Hose Details

FEP Chemical & Food Suction Hose - SW373 Series

 TUBE  White fluorinated ethylene propylene (FEP)
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Yellow EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 300°F (-40°C to 149°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods and liquids, potable water, sanitary products
  • Acids, chemicals, solvents
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker FEP SW373 Hose Details

TITANFLEX® FEP Chemical & Food Suction Hose - SW574 Series

 TUBE  White fluorinated ethylene propylene (FEP)
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Blue EPDM; wrapped finish
 TEMPERATURE RANGE

-40°F to 300°F (-40°C to 149°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods and liquids, potable water, sanitary products
  • Acids, chemicals, solvents
  • In-plant and tank transfer
  • Delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker TITANFLEX® SW574 Hose Details

TITANFLEX® Corrugated Chemical & Food Suction Hose - SW693 Series

 TUBE  Translucent ultra high molecular weight polyethylene (UHMWPE)
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Green EPDM; corrugated wrapped finish
 TEMPERATURE RANGE

-40°F to 250°F (-40°C to 121°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  FDA, USDA, 3-A
 APPLICATIONS
  • Non-fatty and non-oily foods and liquids, potable water, sanitaryproducts
  • Acids, chemicals, solvents
  • In-plant and tank transfer, delivery, transport
 VACUUM  Full
 PACKAGING  Coils
Parker TITANFLEX® SW693 Hose Details
