Food & Beverage Industrial Hoses | Parker | TITANFLEX® Food Suction Hose (Chlorobutyl Tube) | SW630 Series

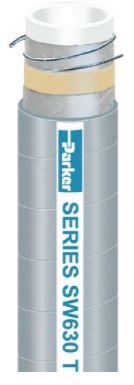

Series SW630 is a suction and discharge hose designed to handle non-fatty and non-oily foods, liquids, sanitary products and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube that will not impart taste or odor, and is resistant to bacteria and microbes. The tube cleans easily with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0 bar). The lightweight construction incorporates a dual wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The EPDM cover is resistant to abrasion, mild chemicals and ozone.



TUBE White chlorobutyl
REINFORCEMENT Multiple textile plies with dual wire helix
COVER Gray EPDM; wrapped finish
TEMPERATURE RANGE

-40°F to 225°F (-40°C to 107°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS FDA, PMO, USDA, 3-A
APPLICATIONS
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
VACUUM Full
PACKAGING Coils



Part Number

ID

Reinf
Plies

OD

Min Bend Rad

Max Rec WP

Std Pack Qty

in

in

in

psi

ft

SW630-1000

1

2

1.614

4.0

200

100

SW630-1500

1-1/2

2

2.137

5.0

200

100

SW630-2000

2

2

2.643

6.0

200

100

SW630-2500

2-1/2

2

3.171

7.5

200

100

SW630-3000

3

2

3.681

9.0

200

100

SW630-4000

4

2

4.728

12.0

200

100

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
