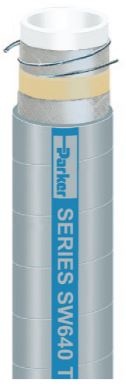

Food & Beverage Industrial Hoses | Parker | TITANFLEX® Food Suction Hose (Nitrile Tube) | SW640 Series
 |
Series SW640 is an extremely flexible, kink resistant suction and discharge hose designed to handle dry materials, fatty and oily foods, liquids, sanitary products and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor. The tube cleans easily with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0 bar). The lightweight construction incorporates a dual wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The nitrile cover is resistant to abrasion and oil.
|
|
Part Number |
ID |
Reinf |
OD |
Min Bend Rad |
Max Rec WP |
Std Pack Qty |
|
in |
in |
in |
psi |
ft |
||
|
SW640-1000 |
1 |
2 |
1.501 |
4.0 |
250 |
100 |
|
SW640-1500 |
1-1/2 |
2 |
2.059 |
5.0 |
250 |
100 |
|
SW640-2000 |
2 |
2 |
2.547 |
6.0 |
250 |
100 |
|
SW640-2500 |
2-1/2 |
2 |
3.105 |
7.0 |
200 |
100 |
|
SW640-3000 |
3 |
2 |
3.638 |
8.0 |
200 |
100 |
|
SW640-4000 |
4 |
2 |
4.714 |
11.0 |
200 |
100 |
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
