Material Handling & Dredge Hoses | Parker | Concrete Placement Hose | 7236 Series

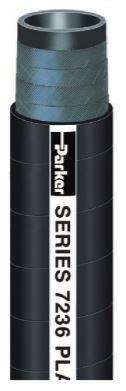

Series 7236 is a high pressure placement hose for dry and wet cement, concrete and plaster. The hose construction incorporates a thick static dissipating natural rubber/SBR blend tube that provides abrasion resistance, and a heavy wall that provides kink resistance. The SBR cover is resistant to abrasion and weathering. Series 7236 is available in 200-foot continuous lengths.
|
Part Number |
ID |
Reinf Plies |
OD |
Min Bend |
Max Rec WP |
Std Pack Qty |
in |
in |
in |
psi |
ft |
||
7236-125800 |
1-1/4 |
4 |
1.882 |
9.0 |
800 |
100 |
7236-150800 |
1-1/2 |
4 |
2.212 |
12.0 |
800 |
100 |
7236-200800 |
2 |
4 |
2.762 |
24.0 |
800 |
100 |
7236-200800050 |
2 |
4 |
2.762 |
24.0 |
800 |
50 |
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
How to Order
- Visit One of Our ParkerStores.
- Visit Our eStore.
- Request a Quote.
