Material Handling & Dredge Hoses | Parker | Corrugated Material Handling Hose | EWC334 Series

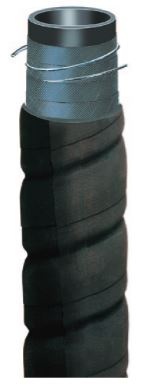

Series EWC334 is a flexible, lightweight, low pressure material transfer hose for dry cement,powders and similar abrasive materials. The 1/8" natural rubber tube provides excellent abrasion resistance, durability and rebound, and the dual wire helix provides full suction capability, kink resistance and a path to conduct a static charge to ground. The corrugated SBR cover provides flexibility and is resistant to abrasion, cuts, scuffs and weathering.


TUBE 1/8" Black natural rubber
REINFORCEMENT Multiple textile plies with dual wire helix
COVER

Black SBR; corrugated wrapped finish

TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Abrasive materials, debris, water
  • Construction, general industrial
VACUUM Full
COUPLINGS Contact Parker
PACKAGING Lengths or coils in bales, crates or slat packs


Part Number

ID

Reinf
Plies

OD

Min Bend Rad

Max Rec WP

Max Lg

in

in

in

psi

ft

EWC334-6000

6

4

6.875

29.0

135

100

EWC334-6625

6-5/8

4

7.500

32.0

125

100

EWC334-8000

8

4

8.875

38.0

100

100

EWC334-8625

8-5/8

4

9.563

42.0

95

100

EWC334-10000

10

4

11.000

48.0

85

50

EWC334-10750

10-3/4

4

11.750

52.0

75

50

EWC334-12000

12

4

13.125

58.0

65

50

EWC334-12750

12-3/4

4

13.872

62.0

65

50



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
