Material Handling & Dredge Hoses | Parker | Dredge Sleeve | ES907 Series

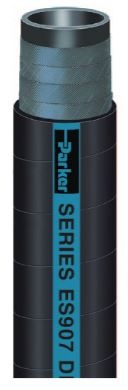

Series ES907 is designed specifically for discharge service of abrasive materials such as debris, sand and slurries in dredging applications. The hose provides a flexible connection between lengths of pipe linked from the dredge site to the shore, compensating for the shifting and twisting of pontoons caused by water movement. The 3/8" natural rubber tube provides abrasion resistance, the heavy wall provides kink resistance and the SBR cover is resistant to abrasion, cuts, scuffs and weathering.


TUBE 3/8" Black natural rubber
REINFORCEMENT Multiple plies of tire cord
COVER

Black SBR; wrapped finish

TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Light abrasive materials, sand, small gravel
  • Dredging operations in coastal areas, gravel pits, lakes, rivers
VACUUM Not recommended
PACKAGING Lengths or coils in bales, crates or slat packs
COUPLINGS Plain or enlarged ends only; contact Parker

Part Number ID (in) OD (in) Reinf Plies Max Rec WP (psi)
ES907-4000 4 5.125 2 150
ES907-4500 4-1/2 5.625 2 150
ES907-5000 5 6.125 2 150
ES907-6000 6 7.313 4 150
ES907-6625 6-5/8 7.875 4 150
ES907-8000 8 9.313 4 150
ES907-8625 8-5/8 10.000 4 150
ES907-10000 10 11.625 6 150
ES907-10750 10-3/4 12.375 6 150
ES907-12000 12 13.625 6 150
ES907-12750 12-3/4 14.375 6 150
ES907-13250 13-1/4 14.875 6 150
ES907-14000 14 15.625 6 150
ES907-16000 16 17.875 8 150
ES907-18000 18 19.875 8 150



How to Order
