Material Handling & Dredge Hoses | Parker | Exacta Pipe Material Handling Hose (Suction/Vacuum) | EW336 Series

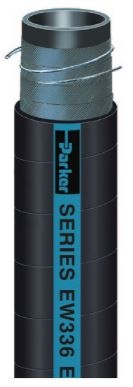

Series EW336 is a general purpose suction and discharge hose for highly abrasive materials. The 1/4" natural rubber tube provides excellent abrasion resistance, durability and rebound, and the wire helix provides full suction capability, kink resistance and a path to conduct a static charge to ground. The SBR cover is resistant to abrasion, cuts, scuffs and weathering.

NOTES:  For higher working pressure hose, refer to Series SW336; for 3/8" tube, refer to Series EW337; for 1/2" tube, refer to Series EW340.

Other customized versions of this product are available. Contact Parker.


TUBE 1/4" Natural rubber
REINFORCEMENT Multiple plies of tire cord with wire helix
COVER

Black SBR; wrapped finish

TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Abrasive materials, debris, water
  • Construction, general industrial
VACUUM Full
PACKAGING Lengths or coils in bales, crates or slat packs
COUPLINGS Contact Parker


Part
Number

ID
(in)

Reinf
Plies

OD
(in)

Min Bend Rad (in)

Max Rec WP (psi)

EW336-4000



4

4

5.125

24.0

100

EW336-5000



5

4

6.125

30.0

100

EW336-6000



6

4

7.125

36.0

100

EW336-6625



6-5/8

4

7.750

40.0

100

EW336-8000



8

4

9.250

48.0

100

EW336-8625



8-5/8

4

9.875

52.0

100

EW336-10000



10

4

11.375

60.0

100

EW336-10750



10-3/4

4

12.250

65.0

100

EW336-12000



12

4

13.500

72.0

100

EW336-12750



12-3/4

4

14.250

77.0

100

EW336-14000



14

6

15.500

84.0

100
