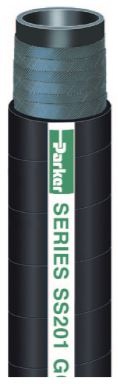

Material Handling & Dredge Hoses | Parker | GOLIATH™ High Pressure Grout Placement Hose | SS201 Series


Series SS201 is a high pressure placement hose for cement, grout, plaster and shotcrete. The SBR tube provides abrasion resistance and the thick wall incorporates multiple plies of reinforcement for contraction/elongation control and kink resistance. The SBR cover is resistant to abrasion, cuts, gouges, scuffs and weathering.



TUBE Black SBR
REINFORCEMENT Multiple textile plies
COVER

Black SBR; wrapped finish
TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 2:1
INDUSTRY STANDARDS ASME B30.27-2014
APPLICATIONS
  • Abrasive materials, cement, grout, plaster, shotcrete
  • Construction, general industrial
VACUUM Not recommended
PACKAGING Coils


Part Number

ID

Reinf
Plies

OD

Approx Wt

Max Rec WP

Std Pack
Qty

in

mm

in

mm

lbs/ft

kg/ft

psi

bar

ft

SS201-1000

1

25.4

2

1.552

39.4

0.54

0.24

1233

85.0

100

SS201-1250

1-1/4

31.8

4

1.898

48.2

0.79

0.36

1233

85.0

100

SS201-1500

1-1/2

38.1

4

2.240

56.9

1.04

0.47

1233

85.0

100

SS201-2000

2

50.8

6

2.803

71.2

1.44

0.65

1233

85.0

100

SS201-2500

2-1/2

63.5

6

3.319

84.3

1.76

0.80

1233

85.0

100

SS201-3000

3

76.2

6

3.961

100.6

2.49

1.13

1233

85.0

100

SS201-4000

4

101.6

6

5.134

130.4

3.77

1.71

1233

85.0

100

SS201-5000

5

127.0

6

6.181

157.0

4.80

2.18

1233

85.0

100

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
