Material Handling & Dredge Hoses | Parker | Material Handling Hose | SS236 Series

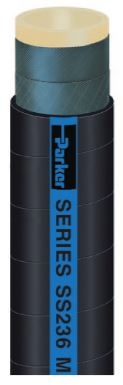

Series SS236 is a durable, rugged, slurry discharge hose for highly abrasive dry and wet materials. The 1/4" natural rubber tube provides abrasion resistance and the SBR cover is resistant to abrasion, cuts, scuffs and weathering.



TUBE 1/4" Tan natural rubber
REINFORCEMENT Multiple textile plies
COVER

Black SBR; wrapped finish

TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Abrasive materials, debris, slurries, water
  • Construction, general industrial, mining
VACUUM Not recommended
PACKAGING Coils


Part
Number

ID
(in)

Reinf
Plies

OD
(in)

Max Rec WP (psi)

Std Pack
Qty
(ft)

SS236-1500

1-1/2

2

2.313

150

100

SS236-2000

2

2

2.813

150

100

SS236-2500

2-1/2

2

3.313

150

100

SS236-3000

3

2

3.813

150

100

SS236-4000

4

2

4.813

100

100

SS236-4500

4-1/2

2

5.313

100

100

SS236-5000

5

2

5.813

100

100

SS236-6000

6

2

6.813

85

100

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
