Material Handling & Dredge Hoses | Parker | Material Handling Hose (Suction/Vacuum) | SW336 Series

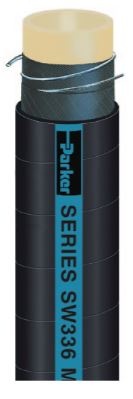

Series SW336 is a durable material suction and discharge hose for highly abrasive materials. The 1/4" natural rubber tube provides abrasion resistance, and the dual wire helix provides full suction capability and kink resistance.



TUBE 1/4" Tan natural rubber
REINFORCEMENT Multiple textile plies with dual wire helix
COVER

Black SBR; wrapped finish

TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Abrasive materials, debris
  • Construction, general industrial, mining
VACUUM Full
COMPARE TO Boston Sabertooth, Diversiflex; Gates 688SB; Veyance Plicord HD Vacuum
PACKAGING Coils


Part Number ID Reinf Plies OD Min Bend Rad
Max WP Std Pack
Qty
(ft)
(in) (in) (in) (psi) Pack
Qty
SW336-3000 3 2 3.938 12.0 125 100
SW336-4000 4 2 5.000 18.0 125 100
SW336-5000 5 2 6.000 25.0 110 100
SW336-6000 6 2 7.063 30.0 110 100

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
