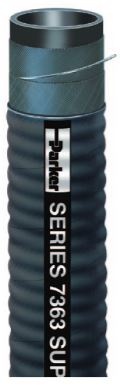

Material Handling & Dredge Hoses | Parker | SUPER-FLEX® Corrugated Material Handling Hose (Suction/Vacuum) | 7363 Series

Series 7363 is a flexible suction and discharge hose for dry or wet abrasive materials in applications such as loading/unloading barges, hoppers and railcars, and debris evacuation. The static dissipating 3/16" natural rubber/SBR blend tube provides abrasion resistance, and the wire helix provides full suction capability and kink resistance. The corrugated natural rubber blend cover provides flexibility and is resistant to abrasion and weathering. Series 7363 is available in 200-foot continuous lengths.


TUBE Black natural rubber/SBR blend; static dissipating
REINFORCEMENT Multiple textile plies with wire helix
COVER

Black natural rubber/SBR blend; corrugated wrapped finish
TEMPERATURE RANGE

-40°F to 160°F (-40°C to 71°C)
DESIGN FACTOR 3:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Abrasive materials, debris, water
  • Loading/unloading barges, hoppers and railcards
  • Construction, general industrial, mining, sewer cleaning
VACUUM Full
COMPARE TO Boston Sabertooth, Diversiflex; Gates 688SB; Veyance Plicord HD Vacuum
PACKAGING Coils


Part Number ID
(in)		 Reinf
Plies		 OD
(in)		 Min Bend Rad (in) Max Rec WP (psi) Std Pack Qty (ft)
7363-2000 2 3 2.740 6.0 100 100
7363-3000 3 3 3.800 9.0 100 100
7363-4000 4 3 4.845 12.0 100 100
7363-5000 5 3 5.929 15.0 100 100
7363-6000 6 3 6.937 18.0 100 100

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
