Oil Field Industrial Hoses | Parker | BS&W™ Oil Field Suction/Vacuum Hose | 7208E Series


BSW-7208E

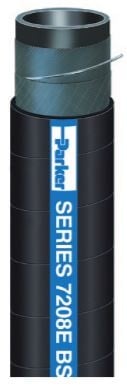

Series 7208E is a flexible, lightweight suction and discharge hose designed to handle brine, crude oil, mild chemicals, petroleum waste, sediments, sludges, slurries and water in harsh oil field bottom sediment and waste pit recovery applications. The hose construction incorporates a wire helix that provides full suction capability, kink resistance, and a path to conduct a static electrical discharge to ground. The nitrile/SBR cover is resistant to abrasion, oil and weathering. Series 7208E is available in 200-foot continuous lengths.



Note: Do not use with refined oil or fuel.



TUBE Black nitrile/SBR
REINFORCEMENT Multiple textile plies with wire helix
COVER

Black nitrile/SBR; wrapped finish

TEMPERATURE RANGE -22°F to 185°F (-30°C to 85°C)
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Brine, crude oil, mild chemicals, petroleum waste, sediments, sludges, slurries, water
  • Oil field waste recovery, general industrial
VACUUM Full
COMPARE TO Jason Tupelo 4677; Kuriyama T601AA; Texcel Tex-Vac; Veyance Flextra Oilfield
PACKAGING Coils



Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplng Rec*
7208E-2000200 2 2 2.440 8.0 150 *
7208E-3000200 3 2 3.540 12.0 150 *
7208E-4000200 4 2 4.570 10.0 150 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
