Oil Field Industrial Hoses | Parker | Mud Suction Hose | TKW160 Series

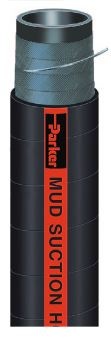

Mud-Suction-TKW160

Series TKW160 is a large diameter suction and discharge hose designed to handle drilling mud, mild chemicals, oily water, petroleum waste and sewage in oil field applications such as a flexible, vibration-dampening connection between the slush pump and mud pit during rotary well drilling. The hose construction incorporates a wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical discharge to ground. The cover is resistant to abrasion and weathering.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with wire helix
COVER

Black synthetic rubber; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Drilling mud, mild chemicals, oily water, sewage
  • General industrial, oil field
VACUUM Full
PACKAGING Coils; straight lengths in bales or slat packs
COUPLINGS Plain ends or ends per customer specification



Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi)
TKW160-4000 4 4 5.000 24.0 100
TKW160-6000 6 4 7.125 36,0 100
TKW160-8000 8 4 9.250 48.0 100
TKW160-10000 10 4 11.375 60.0 100
TKW160-12000 12 4 13.375 72.0 100
