Oil Field Industrial Hoses | Parker | WILDCATTER® Hot Oiler Hose | 7301 Series


WILDCATTER-Hot-Oiler-7301

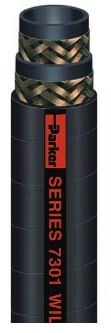

Series 7301 is a heavy duty, high pressure hose for hot oil at 275° continuous/300° intermittent (135°/149°C). The hose construction incorporates multiple wire braids of reinforcement for crush resistance, durability, kink resistance, and a path to conduct a static electrical discharge to ground. The cover is resistant to abrasion, heat, oil and weathering.



TUBE Black chloroprene
REINFORCEMENT Multiple wire braids
COVER

Black chloroprene; wrapped finish

TEMPERATURE RANGE -40°F to 275°/300°F (-40°C to 135°C/159°C)
DESIGN FACTOR 3:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Hot asphalt, glue, tar, oil, wax
  • In-plant transfer, delivery trucks
  • Construction, general industrial, oil field
VACUUM Not recommended
PACKAGING Coils



Part #

ID (in) Reinf Braids OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplng Rec* Std Pack Qty (ft)
7301-1502 1-1/2 2 2.000 13.0 2250 71 50
7301-1502075 1-1/2 2 2.000 13.0 2250 71 75

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
