Petroleum (Aircraft) Industrial Hoses | Parker | Deadman Twin Sensing Hose | 7139 Series


Deadman-7139

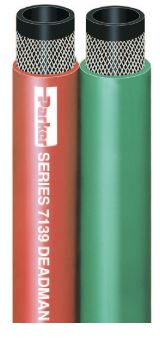

Series 7139 is a flexible air hose incorporated in pneumatic closed-circuit control systems to prevent fuel spills during aircraft fueling operations. The hose is connected to air-actuated shut-off valves that are controlled by the aircraft refueling operator at all times during refueling operations. Series 7139 hose lines are chemically bonded to prevent separation and maximize flexibility, and the distinctive red/green covers provide color-coded identification. The hose features a nitrile tube that is resistant to oil and a chloroprene cover that is resistant to oil and weathering.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies
COVER

Red and green chloroprene; smooth finish

TEMPERATURE RANGE -30°F to 200°F (-34°C to 93°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS Air hose incorporated in pneumatic closed-circuit control systems associated with aircraft refueling operations
VACUUM Not rated
COMPARE TO Carter 64406; Veyance Deadman Aircraft Refueling
PACKAGING Reels



Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7139-251 1/4 2 0.531 2.0 200 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
