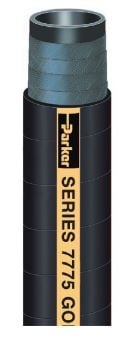

Petroleum (Aircraft) Industrial Hoses | Parker | GOLD LABEL® Aircraft Fueling Hose | 7775 Series


Series 7775 is flexible, lightweight, low pressure aircraft fueling hose. The hose construction and materials provide easy handling for reel service and a path to conduct a static electrical discharge to ground. The premium nitrile tube minimizes permeation and will not contaminate product going through the hose, and the nitrile cover is resistant to abrasion, oil and weathering. Series 7775 is available in 200-foot continuous lengths.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies
COVER

Static conductive black nitrile; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS API 1529:2005, Type C, Grade 1; NFPA 407:2007
APPLICATIONS Aircraft fueling with avgas and jet fuel
VACUUM Not recommended
COMPARE TO Veyance Advantage
PACKAGING Coils



Part #

ID (in) Reinf Plies OD (in) Max Rec WP (psi)
7775-0750 3/4 2 1.378 150
7775-1000 1 2 1.630 150
7775-1250 1-1/4 4 1.910 150
7775-1500 1-1/2 4 2.190 150
