Petroleum (Aircraft) Industrial Hoses | Parker

Petroleum-Aircraft-Application

Parker Hannifin is a premier world-wide supplier of Industrial Hose for wide range of industrial applications. New hoses are continuously being developed for emerging and established industries alike. For special applications, custom hoses are also available.

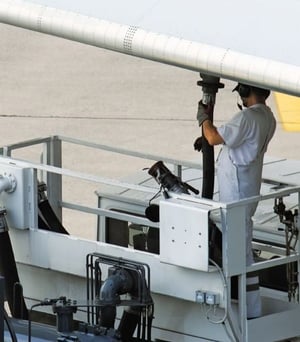

Petroleum Aircraft hoses are designed for aircraft fueling applications. Premium nitrile tubing in Parker's aircraft fueling hoses reduce permeation and prevent contamination of the product, while pneumatic air hose systems prevent fuel spills and monitor pressure and flow.



GOLD LABEL® Aircraft Fueling Hose - 7775 Series

 TUBE  Black nitrile
 REINFORCEMENT  Multiple textile plies
 COVER  Static conductive black nitrile; wrapped finish
 TEMPERATURE RANGE  -40°F to 180°F (-40°C to 82°C)
 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  API 1529:2005, Type C, Grade 1; NFPA 407:2007
 APPLICATIONS  Aircraft fueling with avgas and jet fuel
 VACUUM  Not recommended
 COMPARE TO:  Veyance Advantage
 PACKAGING  Coils
Parker GOLD LABEL® 7775 Hose Details

GOLD LABEL® Aircraft Fueling Hose - 7776 Series

 TUBE  Black nitrile
 REINFORCEMENT  Multiple textile plies
 COVER  Static conductive black nitrile; wrapped finish
 TEMPERATURE RANGE  -40°F to 180°F (-40°C to 82°C)
 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  API 1529:2005, Type E, Grade 2; NFPA 407:2007; BS EN1361:2004
 APPLICATIONS  Aircraft fueling with avgas and jet fuel
 VACUUM  To 8" Hg
 COMPARE TO:  Contitech Elaflex HD-C; Veyance Jet Ranger & Wingcraft; Semperit 48137 TAPC
 PACKAGING  Coils
Parker GOLD LABEL® 7776 Hose Details

GOLD LABEL® Cold Temperature Aircraft Fueling Hose - 7776CT Series

 TUBE  Black nitrile
 REINFORCEMENT  Multiple textile plies
 COVER  Static conductive black nitrile; wrapped finish
 TEMPERATURE RANGE  >-55°F to 180°F (-48°C to 82°C)
 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  API 1529:2005, Type C-CT, Grade 2; NFPA 407:2007
 APPLICATIONS  Aircraft fueling with avgas and jet fuel in cold temperature environments
 VACUUM  To 8" Hg
 COMPARE TO:  Contitech Elaflex HDLT-C
 PACKAGING  Coils
Parker GOLD LABEL® 7776CT Hose Details

GOLD LABEL® Jac-Riser Aircraft Fueling Hose - 7777 Series

 TUBE  Black nitrile
 REINFORCEMENT  Multiple textile plies with dual wire helix
 COVER  Static conductive black nitrile; wrapped finish
 TEMPERATURE RANGE  -40°F to 180°F (-40°C to 82°C)
 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  API 1529:2005, Type E, Grade 2; NFPA 407:2007; BS EN1361:2004
 APPLICATIONS  Aircraft fueling and defueling/unloading with avgas and jet fuel
 VACUUM  Full
 COMPARE TO:  Contitech Elaflex TW; Eaton Carter 64405; Semperit 56132 TAPE
 PACKAGING  Coils
Parker GOLD LABEL® Jac-Riser 7777 Hose Details

Deadman Twin Sensing Hose - 7139 Series

 TUBE  Black nitrile
 REINFORCEMENT  Multiple textile plies
 COVER  Red and green chloroprene; smooth finish
 TEMPERATURE RANGE  -30°F to 200°F (-34°C to 93°C)
 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  None applicable
 APPLICATIONS  Air hose incorporated in pneumatic closed-circuit control systems associated with aircraft refueling operations
 VACUUM  Not rated
 COMPARE TO:  Carter 64406; Veyance Deadman Aircraft Refueling
 PACKAGING  Reels
Parker Deadman Twin Sensing Hose 7139 Details

Twin Sensing Hose - 7140 Series

 TUBE  Black nitrile
 REINFORCEMENT  Multiple textile plies
 COVER  Yellow and green chloroprene; smooth finish
 TEMPERATURE RANGE  -30°F to 200°F (-34°C to 93°C)
 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  None applicable
 APPLICATIONS  Air hose incorporated in pneumatic closed-circuit control systems associated with aircraft refueling operations
 VACUUM  Not rated
 COMPARE TO:  Carter 64407; Veyance Refueling Sensing
 PACKAGING  Reels
Parker Twin Sensing Hose 7140 Details



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
