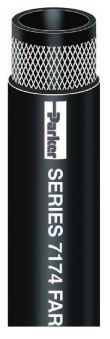

Petroleum Dispenser Industrial Hoses | Parker | Farm Pump/Gravity Tank Fuel Hose | 7174 Series


Series 7174 is designed for low pressure gravity flow dispensing or transfer of refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline and oil from drums, gravity-feed farm pumps, hand pumps, skid tanks and storage tanks where Underwriters Laboratories (UL) listing is not required. The softwall construction incorporates multiple textile plies of reinforcement for flexibility. The cover is resistant to abrasion, oil and ozone.

Note: Do not use with powered pumps.


TUBE Black nitrile
REINFORCEMENT Multiple textile plies

Black chloroprene; smooth finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
  • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
  • Gravity tanks, hand pump dispensers
  • Agriculture
VACUUM Not recommended
COMPARE TO Thermoid Premier Farm Tank; Veyance Aggie Gas


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7174-75052 3/4 2 1.063 5.0 50 *
7174-100052 1 2 1.375 8.0 50 *

 *Couplings: Bulk farm pump hose couplings are not sold separately. Refer to CrimpSource at for other coupling recommendations and crimp specifications.


Farm Pump Hose Factory Assemblies

Crimped on Brass Rigid Male NPT Couplings Each End

Part # (3/4" NPT Each End) ID (in) Length (ft)
71743PR-96 3/4 8
71743PR-120 3/4 10
71743PR-144 3/4 12
71743PR-168 3/4 14

Part # (1" NPT Each End) ID (in) Length (ft)
71741PR-196 1 8
71741PR-120 1 10
71741PR-144 1 12
71741PR-168 1 14


How to Order

Need More Information?



California Prop 65 Warning WARNING: This product can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to
