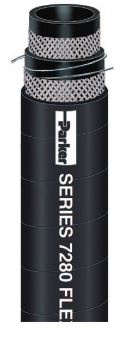

Petroleum Dispenser Industrial Hoses | Parker | FLEX-EVER™ 2000 Hardwall Gasoline Dispenser Hose | 7280 Series


FLEX-EVER-2000-7280

Series 7280 is designed to dispense and transfer refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol (see note), gasoline and oil. The hose meets all Underwriters Laboratories/Canada (UL330/ULC) requirements. The hardwall construction incorporates a dual wire helix that reduces meter creep and provides full suction capability, kink resistance, and a path to conduct a static charge to ground. The cover is resistant to abrasion, cuts, oil and ozone, and will not mar the finish of a vehicle. Series 7280 is suitable for use with reeling devices or applications where retractable cables are employed.

Note: Not UL listed for E85 service.



TUBE Black nitrile
REINFORCEMENT Multiple textile braids with dual wire helix
COVER

Black CPE; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS UL330/ULC; NFPA 30A and UL30N4 (factory assemblies)
APPLICATIONS
  • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
  • Gasoline dispensers and pumps
VACUUM Full
COMPARE TO Gates Curb Pump 124HW; Veyance BC Gasoline
PACKAGING Reels



Part #

ID (in) Reinf Plies OD (in) Min Bend Rad. Max Rec WP (psi) Perm Cplg Rec*
7280-632A 5/8 2 1.031 3.0 150 *
7280-752A 3/4 2 1.172 4.0 150 *
7280-1002A 1 2 1.453 5.0 150 *

*Couplings: Bulk gasoline dispenser hose couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
