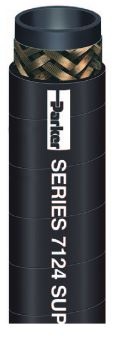

Petroleum Dispenser Industrial Hoses | Parker | SUPER-FLEX® 2000 Semi-Hardwall Gasoline Dispenser Hose | 7124 Series


SUPER-FLEX-2000-7124

Series 7124 is designed to dispense or transfer refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol (see note), gasoline and oil. The hose meets all Underwriters Laboratories/Canada (UL330/ULC) requirements. The semi-hardwall construction incorporates steel wire braided reinforcement that reduces meter creep and provides superior strength, crush-resistant durability, kink resistance, and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, cuts, oil and ozone, and will not mar the finish of a vehicle. Series 7124 is suitable for use with reeling devices or applications where retractable cables are employed.

Note: Not UL listed for E85 service.



TUBE Black nitrile
REINFORCEMENT One wire braid
COVER

Black CPE; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS UL330/ULC; NFPA 30A and UL30N4 (factory assemblies)
APPLICATIONS
  • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
  • Gasoline dispensers and pumps
VACUUM Not recommended
COMPARE TO Thermoid Pumpflex II Hardwall; Veyance Flexsteel Hardwall
PACKAGING Reels



Part #

ID (in) Reinf Braids OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7124-631A 5/8 1 0.969 3.0 150 *
7124-751A 3/4 1 1.100 4.0 150 *
7124-1001A 1 1 1.340 5.0 150 *

 *Couplings: Bulk gasoline dispenser hose couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other coupling recommendations and crimp specifications.
