Petroleum (LPG) Industrial Hoses | Parker | LP Gas Hose | 7132 Series


 lp-gas-7132

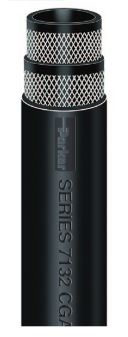

Series 7132 is a flexible, lightweight liquefied petroleum gas (LPG)/propane deliver and transfer hose. The hose meets all Underwriters Laboratories (UL21) and Canadian Gas Association (CGA Type I) requirements. The construction incorporates multiple textile plies of reinforcement for flexibility and kink resistance. The perforated cover is resistant to mild chemicals, oil and ozone. Series 7132 is available in long lengths on reels, long cut lengths and factory-tested assemblies from stock in popular configurations.

Series 7132 and DOT: LPG hose assemblies installed on on-road vehicles must meet Department of Transportation (DOT) requirements. Factory assemblies (3/4" and larger) are pressure tested, one of the fittings is etched with a unique DOT certification number, and a document incorporating the identical certification number accompanies each assembly. Metal DOT identification bands are also available/attached for an additional charge at customer request.

Series 7132 and Natural Gas: The molecules of natural gas are small, enhancing their ability to permeate through standard rubber hose constructions. The permeation process is more rapid as the working pressure increases, and natural gas accumulates with potentially dangerous consquences. Series 7132 may be used for natural gas service, but ONLY under all the following conditions:

  • The application must be in a well-ventilated environment, outdoors or indoors with significant continuous air movement.
  • Series 7132 is not to replace fixed/rigid pipe where that material is more appropriate due to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable tubing or hose with barrier constructions to convey natural gas whenever possible.

Series 7132 and Compressed Natural Gas (CNG): Series 7132 is not for use in any CNG application, including fuel dispensing, on-board vehicle fuel lines, or fuel transfer.

Series 7132 and Anhydrous Ammonia (NH3): Series 7132 is not for use with anhydrous ammonia.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies
COVER

Black chloroprene; perforated smooth finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C) (Note: The hose construction is capable of this rating, but LP gas should NEVER be conveyed over 140°F/60°C)
DESIGN FACTOR 5:1
INDUSTRY STANDARDS UL21; CAN/CGA-8.1-M86 Type I; optional DOT factory hose assembly testing and marking also available for sizes smaller than 3/4"
APPLICATIONS
  • LP gas, propane
  • Cokers, grills, heaters, weed burners; delivery, transfer
  • Agriculture, commercial and residential heating, construction, general industrial
VACUUM Not recommended
COMPARE TO Boston Blackline (LPG); Gates LP350; Thermoid Type 75
PACKAGING Cartons, coils, reels



Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7132-19352 3/16 2 .510 2.0 350 *
7132-25354 1/4 4 0.610 2.5 350 7661
7132-38354 3/8 4 0.760 3.5 350 HY
7132-50354 1/2 4 0.937 4.5 350 7661
7132-75354 3/4 4 1.250 6.5 350 HY
7132-100354 1 4 1.500 7.5 350 7661

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



LP Gas Hose - Factory Assemblies

Crimped-on Carbon Steel Couplings, Rigid Male NPT Thread x Rigid Male NPT Thread Cartons

Part #
ID (in) Length (ft)
7132TY08MP-72 1/2 6
7132TY08MP-96 1/2 8
7132TY08MP-120 1/2 10
7132TY08MP-144 1/2 12
7132TY08MP-180 1/2 15
7132TY08MP-216 1/2 18
7132TY08MP-240 1/2 20
7132TY08MP-300 1/2 25
7132TY08MP-600 1/2 50
7132TY08MP-1200 1/2 100
7132HY12MP-12 3/4 1
7132HY12MP-36 3/4 3
7132HY12MP-120 3/4 10
7132HY12MP-144 3/4 12
7132HY12MP-180 3/4 15
7132HY12MP-216 3/4 18
7132HY12MP-300 3/4 25
7132HY12MP-1200 3/4 100
7132HY12MP-1500 3/4 125
7132HY12MP-1800 3/4 150
7132LAR16MP-1200 1 100
7132LAR16MP-1500 1 125
7132LAR16MP-1800 1 150
7132LAR16MP-2100 1 175







How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
