Petroleum (LPG) Industrial Hoses | Parker | LP Gas Hose | 7170 Series


lp-gas-7170

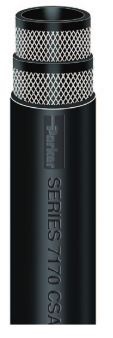

Series 7170 is a flexible, lightweight hose connector for transfer of liquefied petroleum gas (LPG)/propane in barbecue grills, portable heaters, weed burning apparatus and similar appliances.The hose meets all Underwriters Laboratories (UL569) and Canadian Standards Association (CSA) requirements. The construction incorporates multiple textile plies of reinforcement for flexibility and kink resistance. The perforated cover is resistant to mild chemicals, oil and ozone.

Series 7170 and Natural Gas: The molecules of natural gas are small, enhancing their ability to permeate through standard rubber hose constructions. The permeation process is more rapid as the working pressure increases, and natural gas accumulates with potentially dangerous consquences. Series 7170 may be used for natural gas service, but ONLY under all the following conditions:

  • The application must be in a well-ventilated environment, outdoors or indoors with significant continuous air movement.
  • Series 7170 is not to replace fixed/rigid pipe where that material is more appropriate due to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable tubing or hose with barrier constructions to convey natural gas whenever possible.

Series 7170 and Compressed Natural Gas (CNG): Series 7170 is not for use in any CNG application, including fuel dispensing, on-board fuel lines, or fuel transfer.



TUBE Nitrile
REINFORCEMENT Multiple textile plies
COVER

Black chloroprene; perforated smooth finish
TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C) (Note: The hose construction is capable of this rating, but LP gas should NEVER be conveyed over 140°F/60°C)
DESIGN FACTOR 5:1
INDUSTRY STANDARDS UL569; CAN/CGA-8.1-M86 Type I
APPLICATIONS
  • LP gas/propane
  • Cookers, grills, heaters, wood burners, small appliances
  • Consumer, general industrial
VACUUM Not recommended
COMPARE TO Thermoid Type 75
PACKAGING Reels



Part #

 ID (in) Reinf Plies
 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7170-25354 1/4 4 0.610 2.5 350 7661
7170-38354 3/8 4 0.760 3.5 350 HY

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.





How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
