Petroleum (LPG) Industrial Hoses | Parker | LP Gas Hose Static Wire | SS106 Series


 lp-gas-ss106

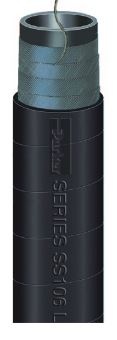

Series SS106 is a large diameter, heavy duty liquefied petroleum gas (LPG)/propane transfer hose for large volume bulk loading/unloading. The hose construction incorporates multiple plies of textile reinforcement for flexibility and kink resistance, and the perforated cover is resistant to abrasion, oil and ozone. The hose meets ISO 2928-1986 (E) requirements.

Note: Not for applications requiring Underwriters Laboratories (UL) or Canadian Gas Association (CGA) performance or listing.

Series SS106 and Natural Gas: The molecules of natural gas are small, enhancing their ability to permeate through standard rubber hose constructions. The permeation process is more rapid as the working pressure increases, and natural gas accumulates with potentially dangerous consquences. Series SS106 may be used for natural gas service, but ONLY under all the following conditions:

  • The application must be in a well-ventilated environment, outdoors or indoors with significant continuous air movement.
  • Series SS106 is not to replace fixed/rigid pipe where that material is more appropriate due to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable tubing or hose with barrier constructions to convey natural gas whenever possible.

Series SS106 and Compressed Natural Gas (CNG): Series SS106 is not for use in any CNG application, including fuel dispensing, on-board vehicle fuel lines, or fuel transfer.

Series SS106 and Anhydrous Ammonia (NH3): Series SS106 is not for use with anhydrous ammonia.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

Black nitrile; perforated wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C) (Note: The hose construction is capable of this rating, but LP gas should NEVER be conveyed over 140°F/60°C)
DESIGN FACTOR  5:1
INDUSTRY STANDARDS ISO 2928-1986 (E)
APPLICATIONS
  • LP gas, propane
  • Bulk loading/unloading, in-plant tank transfer
VACUUM Not recommended
PACKAGING Coils



Part #

ID (in) Reinf Braids
OD (in) Max Rec WP (psi) Perm Cplg Rec*
SS106-1250 1-1/4 4 1.990 350 *
SS106-1500 1-1/2 4 2.240 350 *
SS106-2000 2 4 2.740 350 *
SS106-2500 2-1/2 4 3.240 350 *
SS106-3000 3 4 3.740 350 *
SS106-4000 4 6 5.000 350 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
