Petroleum (Transport) Industrial Hoses | Parker | GREEN LABEL™ Corrugated Tank Truck Hose | 7705 Series

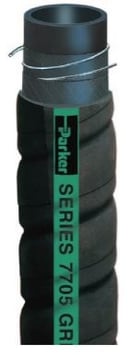

Green-Label-7705

Series 7705 is a flexible, medium pressure suction and discharge hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline. The corrugated hose construction incorporates a dual wire helix that provides full suction capability, flexibility, kink resistance and a path to conduct a static electrical charge to ground. The nitrile/PVC cover is resistant to abrasion, oil and weathering. Series 7705 is available in 200-foot continuous lengths.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with dual helix wire
COVER

Black nitrile/PVC; corrugated wrapped finish

TEMPERATURE RANGE -20°F to 180°F (-29°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil/span
  • In-plant and storage tank transfer
  • Delivery, transport
VACUUM Full
PACKAGING Coils





Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec
7705-1000 1 2 1.437 2.0 200 *
7705-1250 1-1/4 2 1.693 2.5 200 *
7705-1500 1-1/2 2 1.969 3.0 200 *
7705-2000 2 2 2.440 4.0 200 *
7705-2500 2-1/2 2 2.953 5.0 200 *
7705-3000 3 2 3.488 5.0 200 *
7705-4000 4 2 4.527 6.0 150 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
