Petroleum (Transport) Industrial Hoses | Parker | Heavy Duty Tank Truck Hose | 7330 Series

Heavy-Duty-Tank-7330

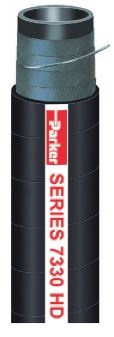

Series 7330 is a heavy duty, high pressure suction and discharge hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline. The elevated working pressure is suitable for bulk loading and unloading. The hose construction incorporates a wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, oil and weathering. Series 7330 is available in 200-foot continuous lengths.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with helix wire
COVER

Black chloroprene; wrapped finish

TEMPERATURE RANGE -20°F to 180°F (-29°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
  • High pressure in-plant and storage tank transfer
  • High pressure bulk loading/unloading; delivery, transport
VACUUM Full
COMPARE TO: Veyance Plicord Super Black Flexwing
PACKAGING Coils





Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7330-1250 1-1/4 2 1.686 6.0 300 *
7330-1500 1-1/2 2 1.976 8.0 300 *
7330-2000 2 4 2.622 8.0 300 *
7330-2000200 2 4 2.622 8.0 300> *
7330-3000 3 4 3.654 15.0 300 TM
7330-3000200 3 4 3.654 15.0 300 TM
7330-4000 4 4 4.840 20.0 300 *
7330-4000200 4 4 >4.840 20.0 300 *
7330-6000 6 6 6.968 36.0 300 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
