Petroleum (Transport) Industrial Hoses | Parker | Hot Tar & Asphalt Hose | SW387 Series

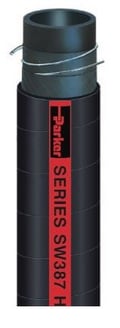

Hot-Tar-Asphalt-SW387

Series SW387 is a suction and discharge hose designed to handle high temperature materials such as hot asphalt, glue, oil, tar and wax to 30°F continuous/350°F intermittent (149°C/177°C). The hose also handles refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline. The hose construction incorporates a dual wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, heat, oil and weathering.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with dual wire helix
COVER

Black nitrile; wrapped finish

TEMPERATURE RANGE

-40°F to 300°F (-40°C to 177°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Hot asphalt, glue, oil, tar and wax; biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline
  • In-plant and storage tank transfer
  • Delivery, transport applicator trucks
VACUUM Full
COMPARE TO Boston Black Cat; Thermoid Transporter; Veyance Pyroflex
PACKAGING Coils

Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi)
SW387-1500 1-1/2 2 2.125 >6.0 150
SW387-2000 2 2 2.625 8.0 150
SW387-2500 2-1/2 2 3.375 10.0 50
SW387-3000 3 2 3.750 12.0 150
SW387-4000 4 2 4.813 18.0 150

Warning: Do not use for continuous service at 350°F. Do not use above 350°F for any service or any duration.
