Petroleum (Transport) Industrial Hoses | Parker | LIGHT-N-BRIGHT™ Plus Corrugated Petroleum Drop Hose | SP204 Series

Light-n-Bright-SP204

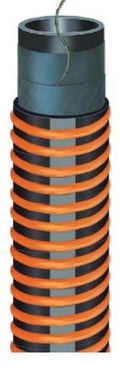

Series SP204 is an extremely flexible, lightweight drop hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline in gravity flow or suction applications. The lightweight hose construction incorporates a static wire as a path to conduct an electrical charge to ground, and the cover features an external PVC helix for full suction capability, flexibility and superior abrasion, crush and kink resistance. Series SP100 banding coils are recommended for installation of couplings. Series XSP100 abrasion coils are available for maximum abrasion resistance along the entire length of the hose.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

Black nitrile with external orange PVC helix

TEMPERATURE RANGE -40°F to 150°F (-40°C to 65°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
  • In-plant and storage tank transfer; transport, delivery
  • Drop/gravity flow service
VACUUM Full
PACKAGING Coils



Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi)
SP204-2000 2 2 3.000 4.0 100
SP204-3000 3 2 4.000 6.0 100
SP204-4000 4 2 5.000 8.0 100
SP204-6000 6 2 7.000 12.0 75

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order
