Petroleum (Transport) Industrial Hoses | Parker | LIGHT-N-BRIGHT™ Corrugated Tank Truck Hose | SP353 Series


Light-n-Bright-SP353

Note: As of April 2018, the SP353 Series LIGHT-N-BRIGHT Corrugated Tank Truck Hose is obsolete and will no longer be available for purchase. Please see Series SWC609 TITANFLEX Corrugated Tank Truck Hose as Parker's recommended replacement.

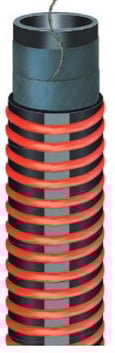

Series SP353 is a flexible, lightweight drop hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline in gravity flow, higher pressure pump-off or suction applications. The lightweight hose construction incorporates a static wire as a path to conduct an electrical charge to ground, and the cover features an external PVC helix for full suction capability, flexibility and superior abrasion, crush and kink resistance. Series SP100 banding coils are recommended for installation of couplings. Series XSP100 abrasion coils are available for maximum abrasion resistance along the entire length of the hose.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

Black nitrile with external red PVC helix

TEMPERATURE RANGE -40°F to 150°F (-40°C to 65°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
  • In-plant and storage tank transfer; transport, delivery
  • Drop/gravity flow; pump-off service
VACUUM Full
PACKAGING Coils





Part #

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi)
SP353-2000 2 2 3.000 6.0 150
SP353-3000 3 2 4.000 8.0 150
SP353-4000 4 2 5.000 10.0 150
>SP353-6000 6 2 7.000 24.0 150
