Petroleum (Transport) Industrial Hoses | Parker |  Lightweight Petroleum Discharge Hose | SS107/SS107R Series

Lightweight-Discharge-SS107-SS107R

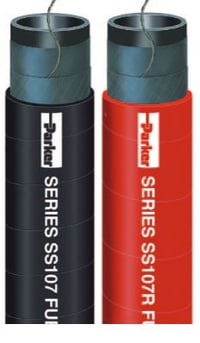

Series SS107/SS107 R is a lightweight, high pressure discharge hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline. The hose construction incorporates a static wire as a path to conduct an electrical charge to ground. The cover is resistant to abrasion, oil and weathering. Series SS107/SS107R is available in 200-ft continuous lengths.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

SS107: Black nitrile; wrapped finish

SS107R: Red chloroprene; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
  • In-plant and storage tank transfer
  • Delivery/transport discharge
VACUUM Not recommended
COMPARE TO: Gates Steer; Veyance Plicord Fuel Delivery
PACKAGING Coils




Series SS107 (Black) and Series SS107R (Red)

Part #

SS107 or SS107R

ID (in) Reinf Plies OD (in) Max Rec WP (psi) Perm Cplg Rec*
-1250 1-1/4 2 1.598 250 *
-1500 1-1/2 2 1.843 250 *
-2000 2 4 2.456 200 *
-3000 3 4 3.456 200 *
-4000 4 4 4.543 200 *
-6000 6 4 6.670 200 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
