Petroleum (Transport) Industrial Hoses | Parker | Petroleum Suction & Discharge Hose | SW333 Series

    Petroleum-SW333

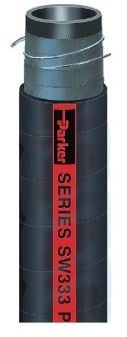

    Series SW333 is a medium pressure suction and discharge hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline in bulk loading and unloading applications. The hose construction incorporates a dual wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The nitrile cover is resistant to abrasion, oil and weathering. Series SW333 is available in 200-foot continuous lengths.

    Note: Do not use Series SW333 in dock service.



     TUBE  Black nitrile
     REINFORCEMENT  Multiple textile plies with dual wire helix
     COVER

    Black nitrile; wrapped finish
     TEMPERATURE RANGE  -40°F to 180°F (-40°C to 82°C)
     DESIGN FACTOR  4:1
     INDUSTRY STANDARDS  None applicable
     APPLICATIONS
    • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
    • High pressure in-plant and storage tank transfer
    • High pressure bulk loading/unloading rail cars and tank trucks, delivery, transport
     VACUUM  Full
     PACKAGING  Coils




    Part #

    		 ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    SW333-2000 2 4 2.622 8.0 250 *
    SW333-3000 3 4 3.654 12.0 250 *
    SW333-4000 4 4 4.842 18.0 250 *
    SW333-6000 6 4 6.929 30.0 250 *

    *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
