Petroleum (Transport) Industrial Hoses | Parker | Translite Tank Truck Hose | 7216/7217 Series

Translite-7216-7217

Series 7216/7217 is a suction and discharge hose designed to handle oil and refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol and gasoline. The hose construction incorporates a wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, oil and weathering. Series 7216/7217 is available in 200-foot continuous lengths.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with wire helix
COVER

7216: Black nitrile; wrapped finish

7217: Red chloroprene; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
  • In-plant and storage tank transfer
  • Delivery, transport
VACUUM Full
COMPARE TO: Boston Puma; Gates Longhorn; Veyance Plicord Flexwing
PACKAGING Coils

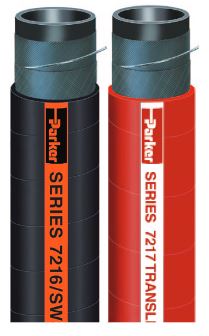

Series 7216 (Black) and Series 7217 (Red)

Part #

7216 or 7217

ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi)

Perm Cplg Rec*

-1002 1 2 1.364 2.0 150 *
-1252 1-1/4 2 1.670 3.0 150 *
-1502 1-1/2 2 1.968 4.0 150 RST
-2002 2 2 2.520 6.0 150 RE, RST, TM
-2502 2-1/2 2 3.028 9.0 150 *
-3002 3 2 3.543 12.0 150 RE, RST, TM
-4002 4 2 4.656 16.0 150 HAPS
-5004** 5 4 5.787 39.0 150 *
-6004** 6 4 6.811 48.0 150 *
-8004 8 4 8.976 72.0 75 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

**Series 7216 only



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
