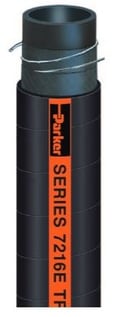

Translite-7216E

Series 7216E is a lightweight suction and discharge hose designed to handle oil and refined fuels such as biodiesel, diesel, ethanol and gasoline. The hose construction incorporates a wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, oil and weathering.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with dual wire helix
COVER Black synthetic rubber; wrapped finish
TEMPERATURE RANGE -35°F to 180°F (-37°C to 82°C)
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
  • In-plant and storage tank transfer
  • Delivery, transport
VACUUM Full
COMPARE TO: Boston Puma; Gates Longhorn; Kuriyama T605AA; Veyance Plicord Flexwing Petroleum
PACKAGING Coils



Part # ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*



7216E-1002 1 2 1.300 3.0 150 43
7216E-1252 1-1/4 2 1.690 4.0 150 43
7216E-1502 1-1/2 2 2.000 5.0 150 43
7216E-2002 2 2 2.500 6.0 150 43
7216E-2502 2-1/2 2 3.000 7.0 150 *
7216E-3002 3 2 3.660 8.0 150 *
7216E-4002 4 2 4.650 11.0 150 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
