PVC Industrial Hoses | Parker | Dynaflex Standard Duty Suction Hose | 7560 Series

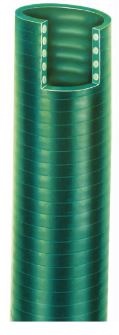

Dynaflex-PVC-7560

Series 7560 is a standard duty suction and discharge hose for dry abrasive materials such as debris, granules, pellets and powders; mild chemicals; and water in a variety of transfer applications. The hose features a smooth tube that is abrasion resistance and allows full-flow. The lightweight construction incorporates a white PVC helix that provides suction capability, and the cover is resistant to abrasion, mild chemicals, ultraviolet light and weathering.



TUBE Green PVC, smooth finish
REINFORCEMENT White PVC helix
COVER Green PVC, smooth finish
TEMPERATURE RANGE

23°F to 140°F (-5°C to 60°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

DESIGN FACTOR 3:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Abrasive materials, debris, mild chemicals, sewage, slurries, water
  • Agriculture, construction, mining
VACUUM See below
COMPARE TO: Gates 100 GR; Kanaflex 100 GR; Kuriyama G and J; Pacific Echo 110, 113; Petzetakis 12500; Superflex 1000 GR
PACKAGING Coils



Part # ID (in) OD (in) Min Bend Rad (in) Max Rec WP @ 68°F (psi) Vacuum Hg (in)
7560-750 3/4 1.000 3.5 120 22
7560-1000 1 1.240 4.5 120 22
7560-1250 1-1/4 1.530 5.7 120 22
7560-1500 1-1/2 1.780 6.7 120 22
7560-2000 2 2.320 9.0 120 22
7560-2500 2-1/2 2.810 11.0 120 22
7560-3000 3 3.430 14.0 120 22
7560-4000 4 4.450 18.0 120 22
7560-6000 6 6.600 30.0 120 22
