PVC Industrial Hoses | Parker | Dynaflex Clear Corrugated PVC Suction Hose | 7563 Series

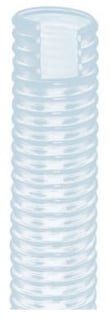

Dynaflex-7563

Series 7563 is a flexible, lightweight PVC suction and discharge hose for dry abrasive materials such as debris, granules, pellets and powders; non-fatty and non-oily foods, liquids and sanitary products;and potable water in a variety of transfer applications. The hose features a smooth tube that is abrasion resistant, will not impart taste or odor, and allows full flow. The lightweight construction incorporates a PVC helix that provides full suction capability and kink resistance. The clear PVC hose wall permits visual observation of materials being conveyed.

Note: Do not use in applications where a static charge may develop unless externally grounded.



TUBE Clear PVC; smooth finish
REINFORCEMENT Clear PVC helix
COVER Clear PVC, corrugated finish; clockwise/right hand orientation
TEMPERATURE RANGE

5°F to 140°F (-15°C to 60°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

DESIGN FACTOR 3:1
INDUSTRY STANDARDS FDA
APPLICATIONS
  • Debris and dry abrasive materials; flour, grains, granules, pellets, potable water, powders, sugar
  • Liquids, non-fatty and non-oily foods
  • Agriculture, construction, marine, in-plant transfer, delivery, transport
VACUUM See below
COMPARE TO: Gates 201 CR; Jason 4660; Kanaflex 200 SFG; Kuriyama WT; Pacific Echo 145; Petzetakis 12426SE; Superflex 9000; Veyance Nutriflex
PACKAGING Coils



Part # ID (in) OD (in) Min Bend Rad (in) Max Rec WP @ 68°F (psi) Vacuum Hg (in)
7563-1000 1 1.220 2.0 55 24
7563-1250 1-1/4 1.480 3.0 50 24
7563-1500 1-1/2 1.840 3.0 50 24
7563-2000 2 2.360 4.0 40 24
7563-2500 2-1/2 2.870 5.0 40 24
7563-3000 3 3.500 6.0 40 24
7563-4000 4 4.640 8.0 35 24
7563-6000 6 6.500 12.0 30 24
