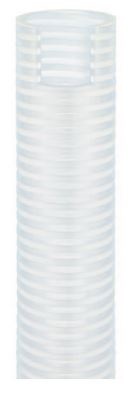

Dynaflex-7564

Series 7564 is a PVC suction and discharge hose for dry abrasive materials such as debris, granules, pellets and powders; non-fatty and non-oily foods, liquids and sanitary products;and potable water in a variety of transfer applications. The hose features a smooth tube that is abrasion resistant, will not impart taste or odor, and allows full flow. The lightweight construction incorporates a white PVC helix that provides full suction capability and kink resistance. The translucent PVC hose wall permits visual observation of materials being conveyed.

Note: Do not use in applications where a static charge may develop unless externally grounded.



TUBE Clear PVC; smooth finish
REINFORCEMENT White PVC helix
COVER Clear PVC, smooth finish
TEMPERATURE RANGE

23°F to 140°F (-15°C to 60°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

DESIGN FACTOR 3:1
INDUSTRY STANDARDS FDA
APPLICATIONS
  • Debris and dry abrasive materials; flour, grains, granules, pellets, potable water, powders, sugar
  • Liquids, non-fatty and non-oily foods
  • Agriculture, construction, marine, in-plant transfer, delivery, transport
VACUUM See below
COMPARE TO: Gates 101 CR, 200 CL; Jason 4606; Kuriyama H; Pacific Echo 090, 115; Superflex 1000CL; Veyance Nutriflow
PACKAGING Coils



Part # ID (in) OD (in) Min Bend Rad (in) Max Rec WP @ 68°F (psi) Vacuum Hg (in)
7564-500 1/2 0.750 2.5 120 28
7564-750 3/4 1.000 3.0 90 28
7564-1000 1 1.220 4.0 90 28
7564-1250 1-1/4 1.530 5.0 80 28
7564-1500 1-1/2 1.810 6.0 75 28
7564-2000 2 2.340 8.0 75 28
7564-2500 2-1/2 2.850 10.0 75 28
7564-3000 3 3.450 12.0 65 28
7564-4000 4 4.500 16.0 55 28
7564-6000 6 6.650 24.0 35 28
