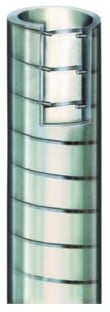

Dynaflex-7570

Series 7570 is a heavy duty PVC suction and discharge hose for dry abrasive materials such as debris, granules, pellets and powders; non-fatty and non-oily foods, liquids and sanitary products;and potable water in a variety of transfer applications. The hose features a smooth tube that is abrasion resistant, will not impart taste or odor, and allows full flow. The lightweight construction incorporates a wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to the ground. The translucent PVC hose wall permits visual observation of materials being conveyed.



TUBE Green tint PVC; smooth finish
REINFORCEMENT Wire helix
COVER Green tint PVC; smooth
TEMPERATURE RANGE

14°F to 140°F (-10°C to 60°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

DESIGN FACTOR 3:1
INDUSTRY STANDARDS FDA
APPLICATIONS
  • Debris and dry abrasive materials; flour, grains, granules, pellets, potable water, powders, sugar
  • Liquids, non-fatty and non-oily foods
  • Agriculture, construction, marine, in-plant transfer, delivery, transport
VACUUM See below
COMPARE TO: Gates 202SW; Kuriyama 7160; Pacific Echo W145; Petzetakis 17009; Veyance Nutriflex Static Wire
PACKAGING Coils



Part # ID (in) OD (in) Min Bend Rad (in) Max Rec WP @ 68°F (psi) Vacuum Hg (in)
7570-380 3/8 0.630 0.9 115 27
7570-500 1/2 0.760 1.2 115 27
7570-750 3/4 0.890 1.6 115 27
7570-1000 1 1.320 2.5 85 27
7570-1250 1-1/4 1.580 3.3 72 27
7570-1500 1-1/2 1.850 3.5 72 27
7570-2000 2 2.420 5.0 72 27
7570-2500 2-1/2 2.950 6.5 57 25
7570-3000 3 3.550 8.0 57 25
7570-4000 4 4.650 12.0 36 24
7570-6000 6 6.650 18.0 28 22
